What is an Argo Float?

Argo Floats are robots that float at different depths in the sea collecting information. They surface every 10 days and send their data about temperature and salinity to a satellite.

An Argo Float is a steel float weighing about 25kg, with instruments inside. An Argo float is able to do three things:

An Argo Float:

  1. is able to change its buoyancy so it floats at different depths
  2. is able to take measurements of sea water
  3. is able to send information to a satellite.

Argo Float buoyancy

By changing its own buoyancy, an Argo Float is able to float at different depths. It changes its floating depth regularly every 10 days like this:

  Where is the Argo Float? What is the Argo Float doing? Approximate time
Day 1 on surface floating 6 hours*
going down descending 6 hours
Day 2-9 at 1,000m floating 9 days
going down descending 2 hours
at 2,000m floating 2 hours
Day 10 going up ascending 8 hours
on surface (same as day 1)*

*Note that changes in technology now allow the Argo Float to send data to satellites in 20 minutes rather than several hours. This means it has to spend less time on the surface where bad things can happen to it eg getting hit by other floating objects.

This 10 day up-and-down is called a 'cycle'. At the end of every cycle the Argo Float sends its information to satellites. This information is called a 'profile'.

How do Argo Floats measure the ocean?

A fun and quirky YouTube video animationExternal Link that explains what an Argo float is, how it operates and how the data helps us understand ocean circulation and climate.

(Story by Malou Zuidema and Esmee van Wijk, Artist Malou Zuidema, Scientist Esmee van Wijk, Voice-over Jan Zika. Thanks to Australia Argo Team, Supported by CSIRO, ArgoExternal Link and IMOSExternal Link.)

Argo measurements

While the Argo Float is underwater it measures three things about the ocean:

An Argo Float measures:

  1. salinity (amount of salt in the water) measures in parts per thousand
  2. temperature in degrees Centigrade (°C)
  3. pressure in decibars (db)

Note that 1decibar (db) is equal to 1 metre of depth. So 1,000db is about 1,000m below the sea surface.

Argo information to satellites

While the Argo Float is on the sea surface it sends its information to a satellite. This information is called ‘data’.

When the Argo Float comes to the surface every 10 days it sends the following data to a satellite:

  1. temperature and depth
  2. salinity and depth
  3. position

The data uploaded to satellites is collected while the Argo Float travels from 2,000m underwater to the surface. The data describes a 'profile' of the ocean. That means it shows the changing temperature and salinity as the Argo Float rises to the surface. Over a million Argo Float profiles have been uploaded since the first Argo Float was deployed in the year 2000. Have a look at the image on this page of a typical Argo Float profile.

The position of the Argo float tells us how far it has moved since the last time it came to the sea surface. The position is given as latitude and longitude.

Regular Argo Floats

Regular Argo Floats are the ones described above. They are steel cylinders about 1.2m long and weighing about 25kg. They are designed to be strong enough to descend to 2,000m below the surface of the sea.  At a depth below 2,600m they will crush and be destroyed.

Deep Argo Floats

Deep Argo Floats are designed to go down to depths as far as 5,000m. The pressure at this depth is 2.5 times greater than at 2,000m where Regular Argo Floats descend to. Deep Argo floats are glass spheres not metal cylinders. A sphere is able to withstand much greater pressure than a cylinder. The voyage of the RV Tangaroa in June 2014 will test the new Deep Argo Float.

  • Māori keywords

  • Samoan keywords

    -  buoyancy or float
    vai sami  sea water
    moana vasa  ocean
    masima mai le sami  sea salt
    -  pressure
  • Tongan keywords

    tētē  buoyancy or float
    vai tahi  sea water
    moana  ocean
    masima  sea salt
    -  pressure
  • Cook Islands Māori keywords

  • Niuean keywords

    hili  buoyancy or float
    vala tahi  sea water
    moana  ocean
    masima tahi  sea salt
    peehi, fofota  pressure

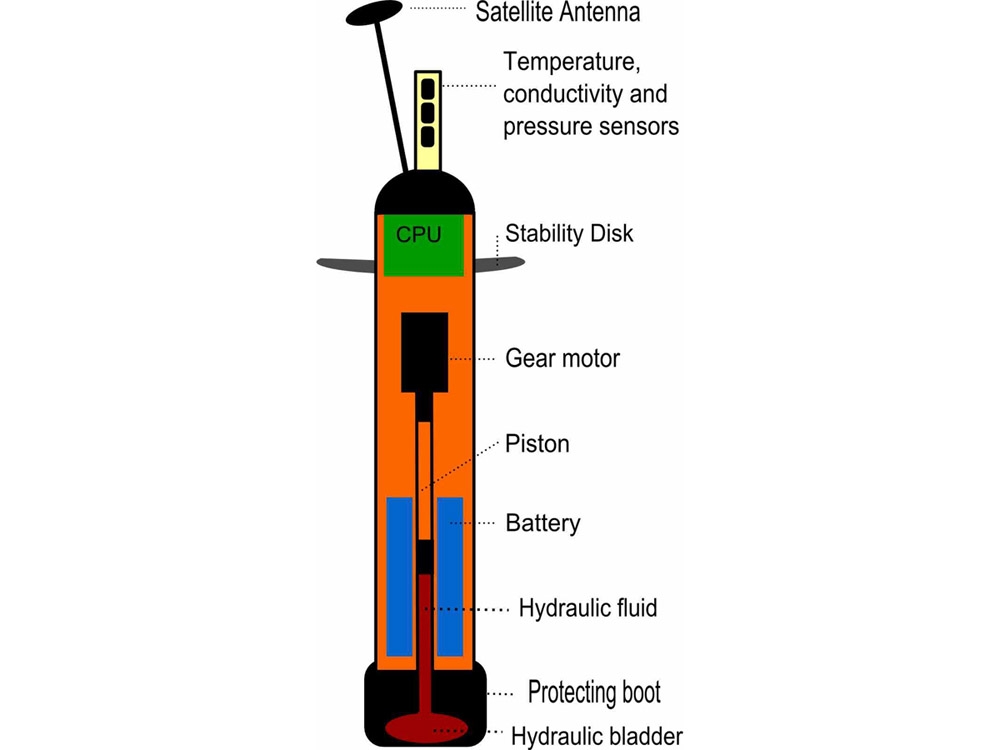

A regular argo float is a steel cylinder about 2m high. It contains a battery, a buoyancy device, measuring equipment and a satellite antenna. Image source

,

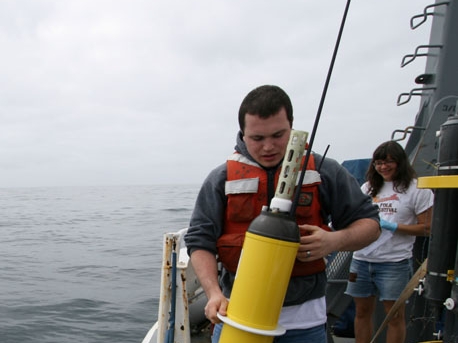

An Argo Float ready for deployment.

,

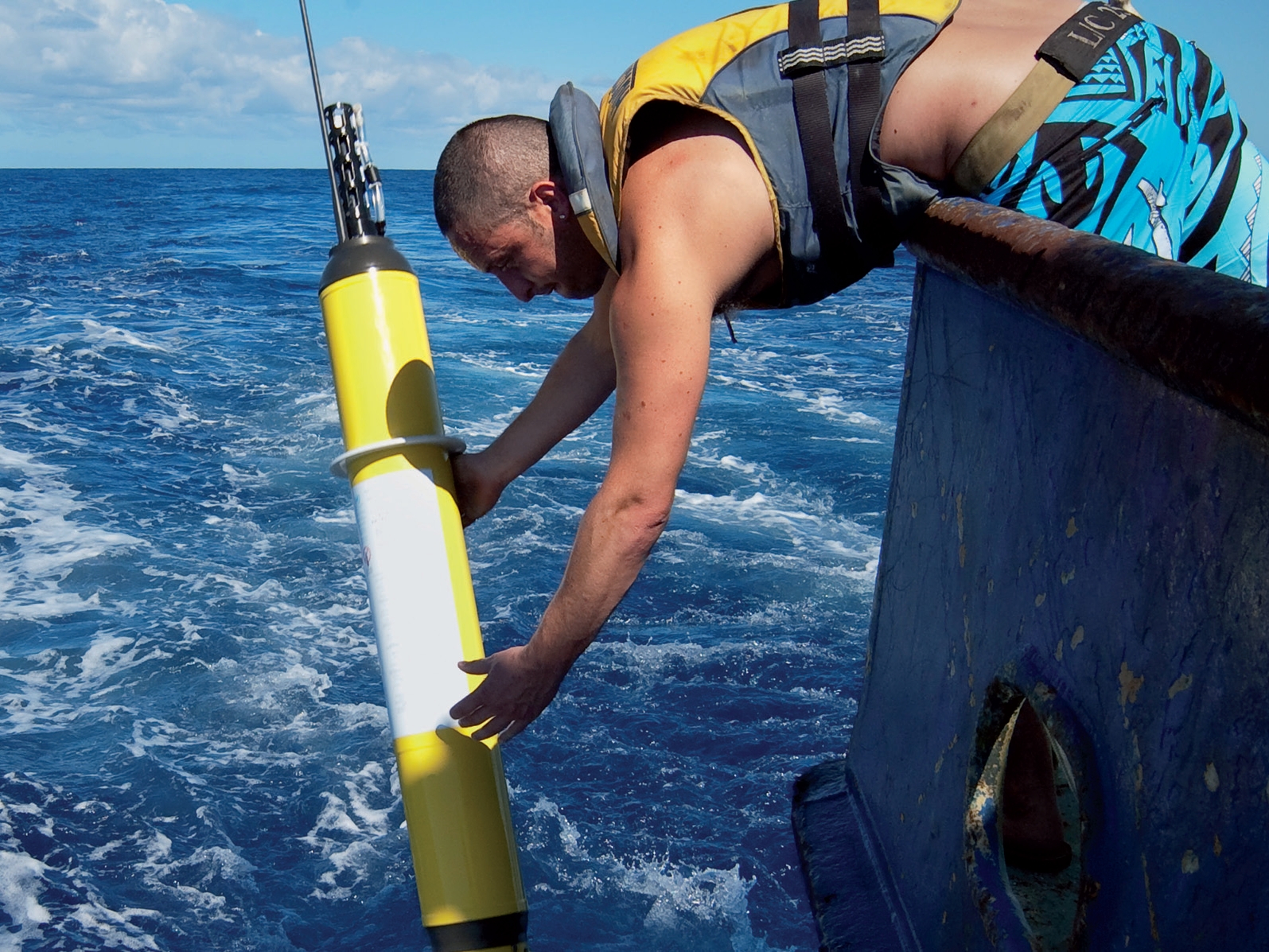

An Argo Float being deployed over the side of a ship.

Next step learning: Find out about other research in to the deep oceans
